Every model comes with LED headlamps and rear combination lamps. All models are available with Premcar tuned suspension⁽²⁾ [Available as an option at additional cost for the SL Model]. Towbar, Sports Bar, Tubliner and Tailgate Assist are optional accessories and are available at additional cost.

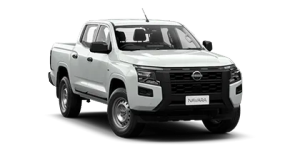

navara sl 4x4 dual cab side profile

SL Dual Cab

Equipment Includes

  • 5 star ANCAP
  • 2.4L twin turbo diesel engine
  • 3,500kg maximum braked towing capacity‡
  • 1 tonne payload⁽⁴⁰⁾
  • Electronic rear differential lock
  • Intelligent Around View Monitor with Moving Object Detection⁽²⁶⁾

You are viewing

{xss:encodeForHTML(xssAPI,properties.txOverViewTabLabel)}

Overview

Diesel 2.4L twin turbo diesel engine Automatic 6 4X4

Equipment Includes

Automatic
Transmission
4X4
drivetrain

Specs

Your Version

Engine

  • Fuel Type

    Diesel

  • Driven wheels

    4X4

  • Number of Gears

    6

  • Number of Cylinders

    4

  • Gear Box Type

    Automatic

  • Displacement (cc)

    2442

  • Bore x stroke (mm)

    86.0 x 105.1

  • Maximum power (kW @ rpm)

    150 @ 3500

  • Maximum torque (Nm @ rpm)

    470 @ 1500 - 2750

Dimensions

  • Overall length (mm)

    5320

  • Overall width (excluding mirrors) (mm)

    1865

  • Overall height (mm)

    1795

  • Wheelbase (mm)

    3130

  • Track front/rear (mm)

    1570 / 1565

  • Min. turning circle (kerb to kerb) (m)

    12.7

  • Ground clearance unladen (mm)

    228

  • Overhang - front

    890

  • Overhang - rear

    1300

  • Approach angle (degrees)

    30.4

  • Departure angle (degrees)

    22.8

  • Ramp breakover angle (degrees)

    23.4

  • Cargo Bed - length floor (mm)

    1555

  • Cargo Bed - length top (mm)

    1555

  • Cargo Bed - width floor (mm)

    1545

  • Cargo Bed - width top (mm)

    1545

  • Cargo Bed - width between wheel arches (mm)

    1135

  • Cargo Bed - tailgate opening width (mm)

    1360

  • Cargo Bed - height (mm)

    525

Weight

  • Gross Vehicle Mass (GVM) (kg)

    3190

  • Gross Combined Mass (GCM) (kg)

    6250

  • Kerb mass (kg)

    2125

  • Payload (kg)

    1065

  • Gross front axle (kg)

    1580

  • Gross rear axle (kg)

    2040

  • Trailer without brakes (kg)

    750

  • Trailer with brakes (kg)

    3500

  • Fuel tank capacity (litres)

    Diesel - 75

  • Fuel tank capacity (litres)

    Ad Blue - 17

Consumptions

  • Fuel consumption (combined ADR 81/02) (l/100km)

    7.7

  • CO₂ emissions (g/km)

    203

Chassis

  • Transfer case

    Dual range 4x4 with electronic selection

  • Fuel System

    Common rail direct injection

  • Front Brakes

    Ventilated discs

  • Rear Brakes

    Drum

  • Front Suspension

    Independent double-wishbone with coil spring and stabiliser bar

  • Rear Suspension

    Leaf spring

  • Power Steering

    Electronic Power Steering

Body

  • Body Type

    Dual Cab

  • Number of Doors

    4

  • Number of Seats

    5

Equipment

Your Version

Upholstery

  • Seat trim - black fabric

Wheels

  • Steel Wheels - 17” x 7.5”

Capability

  • Hill Start Assist (HSA)

  • Trailer Sway Control

  • Rear Electronic Differential Lock

  • Steel underbody protector (below radiator)

  • Full Size Spare Wheel - Steel

Exterior

  • V-motion front grille

  • Side Window Surround - Black

  • Headlamps - LED

  • Tail Lamps - LED

  • Daytime Running Lamps - LED

  • Door Mirrors - Black Plastic

  • Front Bumper - Body colour with black grained lower

  • Rear Bumper - Black plastic with Gloss Black accents

  • Door Handles - Black Plastic

  • UV & Heat Rejecting Windscreen

  • "Navara" tailgate badge - silver

  • All Terrain Tyres - 265/65R17

  • Side Body Moulding - black grained

  • Manually levelling headlights

Comfort & Convenience

  • Intelligent Cruise Control

  • Power Adjustable Door Mirrors

  • Power Windows (Auto Up/Down for Driver)

  • Automatic Headlights

  • Automatic Rain Sensing Wipers

  • Rear Window Defroster

  • Remote Keyless Entry

  • Air Conditioning - Automatic

  • 2nd Row Air Vents

Audio & Connectivity

  • 9.0" Touchscreen

  • Wireless Apple CarPlay & Wired Android Auto

  • Bluetooth Phone & Audio Streaming

  • AM/FM/DAB+ Radio

  • Speakers - 4

  • 2 x 12V Outlet (Instrument Panel / Rear of Centre Console)

  • 1 x USB-A, 1x USB-C (data and charge) - Instrument Panel

  • 1 x USB-A / 1 x USB-C (charge only) - Rear of Centre Console

  • Satellite Navigation

Interior

  • 7.0" Advanced Drive-Assist Instrument Cluster Display

  • Digital Speedometer

  • Driver seat - 6-way manual adjustable with 2-way power lumbar

  • Passenger seat - 4-way manual adjustable

  • Front Seat - Seat Back Pockets

  • Passenger seat back upper pockets

  • Rear Seat - Armrest with Cup Holder

  • Rear Seat - Headrests (3)

  • Rear Seat - ISOFIX x2

  • Rear Seat - Top Tether Child Seat Anchor x2

  • Bench rear seats

  • Steering Wheel - Urethane

  • Gear Shift Lever - urethane with PVC boot

  • Floor Material - Vinyl

  • Door Handles - Black

  • Centre Console Lid - Plastic

  • Ambient Temperature Gauge

  • Sunglasses Holder

Safety / Security

  • Around View Monitor with Moving Object Detection (MOD)

  • Anti-lock Braking System (ABS) and Electronic Brakeforce Distribution (EBD)

  • Vehicle Dynamic Control (VDC) with Brake Limited Slip Differential (BLSD)

  • Electronic Brakeforce Distribution

  • 8 Airbags (Front, Side Seat, Curtain, Driver Knee, Front Row Centre)

  • Reverse Parking Camera

  • Front & Rear Parking Sensors

  • Intelligent Forward Collision Warning (IFCW)

  • Intelligent Emergency Braking (IEB)

  • Intelligent Driver Alert (IDA)

  • Lane Departure Warning (LDW)

  • Intelligent Lane Intervention (ILI)

  • Blind Spot Warning (BSW)

  • Emergency Lane Assist (ELA)

  • Rear Cross Traffic Alert (RCTA)

  • Tyre Pressure Monitoring System (TPMS)

  • 3-point seatbelts with warning for all seats

  • Central Locking (Speed Sensing with Anti-Lock Out)

  • Immobiliser & Alarm

  • Child safety rear door locks

  • Lockable Fuel Filler Door

  • Front Cross Traffic Alert (FCTA)

  • Traffic Sign Recognition (TSR)

  • Speed Limiter

  • Electronic Data Recorder

  • Secondary Collision Mitigation Braking

  • Emergency Assist for Pedal Misapplication (forwards & reverse)

  • Traction Control System

  • Trailer Sway Control

  • Speed Sensing Central Locking

Trim

  • Black

Pre-paid Maintenance Plan

  • 2 YEARS / 2 SERVICES

  • 3 YEARS / 3 SERVICES

  • 4 YEARS / 4 SERVICES

  • 5 YEARS / 5 SERVICES

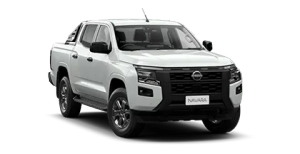

navara auto 4x4 st dual cab side profile

ST Dual Cab

Equipment Includes

  • 17” alloy wheels
  • LED front fog lights
  • Privacy glass
  • Side steps
  • Premcar tuned suspension⁽²⁾ available
  • LED headlamps and rear combination lamps

You are viewing

{xss:encodeForHTML(xssAPI,properties.txOverViewTabLabel)}

Overview

Diesel 2.4L twin turbo diesel engine Automatic 6 4X4

Equipment Includes

Automatic
Transmission
4X4
drivetrain

Specs

Your Version

Engine

  • Fuel Type

    Diesel

  • Driven wheels

    4X4

  • Number of Gears

    6

  • Number of Cylinders

    4

  • Gear Box Type

    Automatic

  • Displacement (cc)

    2442

  • Bore x stroke (mm)

    86.0 x 105.1

  • Maximum power (kW @ rpm)

    150 @ 3500

  • Maximum torque (Nm @ rpm)

    470 @ 1500 - 2750

Dimensions

  • Overall length (mm)

    5320

  • Overall width (excluding mirrors) (mm)

    1865

  • Overall height (mm)

    1795

  • Wheelbase (mm)

    3130

  • Track front/rear (mm)

    1570 / 1565

  • Min. turning circle (kerb to kerb) (m)

    12.7

  • Ground clearance unladen (mm)

    228

  • Overhang - front

    890

  • Overhang - rear

    1300

  • Approach angle (degrees)

    30.4

  • Departure angle (degrees)

    22.8

  • Ramp breakover angle (degrees)

    23.4

  • Cargo Bed - length floor (mm)

    1555

  • Cargo Bed - length top (mm)

    1555

  • Cargo Bed - width floor (mm)

    1545

  • Cargo Bed - width top (mm)

    1545

  • Cargo Bed - width between wheel arches (mm)

    1135

  • Cargo Bed - tailgate opening width (mm)

    1360

  • Cargo Bed - height (mm)

    525

Weight

  • Gross Vehicle Mass (GVM) (kg)

    3190

  • Gross Combined Mass (GCM) (kg)

    6250

  • Kerb mass (kg)

    2120

  • Payload (kg)

    1070

  • Gross front axle (kg)

    1580

  • Gross rear axle (kg)

    2040

  • Trailer without brakes (kg)

    750

  • Trailer with brakes (kg)

    3500

  • Fuel tank capacity (litres)

    Diesel - 75

  • Fuel tank capacity (litres)

    Ad Blue - 17

Consumptions

  • Fuel consumption (combined ADR 81/02) (l/100km)

    7.7

  • CO₂ emissions (g/km)

    203

Chassis

  • Transfer case

    Dual range 4x4 with electronic selection

  • Fuel System

    Common rail direct injection

  • Front Brakes

    Ventilated discs

  • Rear Brakes

    Drum

  • Front Suspension

    Independent double-wishbone with coil spring and stabiliser bar

  • Rear Suspension

    Leaf spring

  • Power Steering

    Electronic Power Steering

Body

  • Body Type

    Dual Cab

  • Number of Doors

    4

  • Number of Seats

    5

Equipment

Your Version

Upholstery

  • Seat trim - black fabric

Wheels

  • Silver Alloy Wheels - 17” x 7.5”

Capability

  • Hill Start Assist (HSA)

  • Trailer Sway Control

  • Rear Electronic Differential Lock

  • Steel underbody protector (below radiator)

  • Full Size Spare Wheel - Matching Alloy

Exterior

  • V-motion front grille

  • Side Window Surround - Black

  • Privacy Glass (second row and rear window)

  • Headlamps - LED

  • Tail Lamps - LED

  • Daytime Running Lamps - LED

  • LED Turn Signals in Door Mirrors

  • LED Front Fog Lamps

  • Side Steps - black grained

  • Door Mirrors - Boulder Grey

  • Front Bumper - Body colour with black grained lower

  • Rear Bumper - Black plastic with Gloss Black accents

  • Door Handles - Boulder Grey

  • UV & Heat Rejecting Windscreen

  • "Navara" tailgate badge - silver

  • All Terrain Tyres - 265/65R17

  • Manually levelling headlights

Comfort & Convenience

  • Intelligent Cruise Control

  • Power adjustable, power folding, heated door mirrors

  • Power Windows (Auto Up/Down for Driver)

  • High Beam Assist (HBA)

  • Automatic Headlights

  • Automatic Dimming Frameless Internal Rear View Mirror

  • Automatic Rain Sensing Wipers

  • Rear Window Defroster

  • Remote Keyless Entry

  • Air Conditioning - Automatic

  • 2nd Row Air Vents

Audio & Connectivity

  • 9.0" Touchscreen

  • Wireless Apple CarPlay & Wired Android Auto

  • Bluetooth Phone & Audio Streaming

  • AM/FM/DAB+ Radio

  • Speakers - 4

  • 2 x 12V Outlet (Instrument Panel / Rear of Centre Console)

  • 1 x USB-A, 1x USB-C (data and charge) - Instrument Panel

  • 1 x USB-A / 1 x USB-C (charge only) - Rear of Centre Console

  • Satellite Navigation

Interior

  • 7.0" Advanced Drive-Assist Instrument Cluster Display

  • Digital Speedometer

  • Driver seat - 6-way manual adjustable with 2-way power lumbar

  • Passenger seat - 4-way manual adjustable

  • Front Seat - Seat Back Pockets

  • Passenger seat back upper pockets

  • Rear Seat - Armrest with Cup Holder

  • Rear Seat - Headrests (3)

  • Rear Seat - ISOFIX x2

  • Rear Seat - Top Tether Child Seat Anchor x2

  • Bench rear seats

  • Steering Wheel - Leather-accented

  • Gear Shift Lever - urethane with PVC boot

  • Floor Material - Carpet

  • Door Handles - Black

  • Centre Console Lid - Plastic

  • Ambient Temperature Gauge

  • Sunglasses Holder

Safety / Security

  • Around View Monitor with Moving Object Detection (MOD)

  • Anti-lock Braking System (ABS) and Electronic Brakeforce Distribution (EBD)

  • Vehicle Dynamic Control (VDC) with Brake Limited Slip Differential (BLSD)

  • Electronic Brakeforce Distribution

  • 8 Airbags (Front, Side Seat, Curtain, Driver Knee, Front Row Centre)

  • Reverse Parking Camera

  • Front & Rear Parking Sensors

  • Intelligent Forward Collision Warning (IFCW)

  • Intelligent Emergency Braking (IEB)

  • Intelligent Driver Alert (IDA)

  • Lane Departure Warning (LDW)

  • Intelligent Lane Intervention (ILI)

  • Blind Spot Warning (BSW)

  • Emergency Lane Assist (ELA)

  • Rear Cross Traffic Alert (RCTA)

  • Tyre Pressure Monitoring System (TPMS)

  • 3-point seatbelts with warning for all seats

  • Central Locking (Speed Sensing with Anti-Lock Out)

  • Immobiliser & Alarm

  • Child safety rear door locks

  • Lockable Fuel Filler Door

  • Front Cross Traffic Alert (FCTA)

  • Traffic Sign Recognition (TSR)

  • Speed Limiter

  • Electronic Data Recorder

  • Secondary Collision Mitigation Braking

  • Emergency Assist for Pedal Misapplication (forwards & reverse)

  • Traction Control System

  • Trailer Sway Control

  • Speed Sensing Central Locking

Trim

  • Black

Pre-paid Maintenance Plan

  • 2 YEARS / 2 SERVICES

  • 3 YEARS / 3 SERVICES

  • 4 YEARS / 4 SERVICES

  • 5 YEARS / 5 SERVICES

navara auto 4x4 st-x dual cab side profile

ST-X Dual Cab

Equipment Includes

  • Super 4WD system with Terrain Selector
  • Hill descent control⁽²⁶⁾
  • 18” alloy wheels
  • Premcar tuned suspension⁽²⁾ available
  • LED headlamps and rear combination lamps
  • Wireless phone charger⁽⁵²⁾

You are viewing

{xss:encodeForHTML(xssAPI,properties.txOverViewTabLabel)}

Overview

Diesel 2.4L twin turbo diesel engine Automatic 6 4X4

Equipment Includes

Automatic
Transmission
4X4
drivetrain

Specs

Your Version

Engine

  • Fuel Type

    Diesel

  • Driven wheels

    4X4

  • Number of Gears

    6

  • Number of Cylinders

    4

  • Gear Box Type

    Automatic

  • Displacement (cc)

    2442

  • Bore x stroke (mm)

    86.0 x 105.1

  • Maximum power (kW @ rpm)

    150 @ 3500

  • Maximum torque (Nm @ rpm)

    470 @ 1500 - 2750

Dimensions

  • Overall length (mm)

    5320

  • Overall width (excluding mirrors) (mm)

    1865

  • Overall height (mm)

    1795

  • Wheelbase (mm)

    3130

  • Track front/rear (mm)

    1570 / 1565

  • Min. turning circle (kerb to kerb) (m)

    12.7

  • Ground clearance unladen (mm)

    228

  • Overhang - front

    890

  • Overhang - rear

    1300

  • Approach angle (degrees)

    30.4

  • Departure angle (degrees)

    22.8

  • Ramp breakover angle (degrees)

    23.4

  • Cargo Bed - length floor (mm)

    1555

  • Cargo Bed - length top (mm)

    1555

  • Cargo Bed - width floor (mm)

    1545

  • Cargo Bed - width top (mm)

    1545

  • Cargo Bed - width between wheel arches (mm)

    1135

  • Cargo Bed - tailgate opening width (mm)

    1360

  • Cargo Bed - height (mm)

    525

Weight

  • Gross Vehicle Mass (GVM) (kg)

    3190

  • Gross Combined Mass (GCM) (kg)

    6250

  • Kerb mass (kg)

    2125

  • Payload (kg)

    1065

  • Gross front axle (kg)

    1580

  • Gross rear axle (kg)

    2040

  • Trailer without brakes (kg)

    750

  • Trailer with brakes (kg)

    3500

  • Fuel tank capacity (litres)

    Diesel - 75

  • Fuel tank capacity (litres)

    Ad Blue - 17

Consumptions

  • Fuel consumption (combined ADR 81/02) (l/100km)

    7.7

  • CO₂ emissions (g/km)

    203

Chassis

  • Transfer case

    Dual range 4x4 with electronic selection

  • Fuel System

    Common rail direct injection

  • Front Brakes

    Ventilated discs

  • Rear Brakes

    Drum

  • Front Suspension

    Independent double-wishbone with coil spring and stabiliser bar

  • Rear Suspension

    Leaf spring

  • Power Steering

    Electronic Power Steering

Body

  • Body Type

    Dual Cab

  • Number of Doors

    4

  • Number of Seats

    5

Equipment

Your Version

Upholstery

  • Seat trim - black leather-accented with "Navara" front seat embroidery

Wheels

  • Gunmetal Alloy Wheels - 18” x 7.5”

Capability

  • Hill Start Assist (HSA)

  • Hill Descent Control (HDC)

  • Terrain Mode Selector (Normal, Eco, Gravel, Snow, Mud, Sand & Rock)

  • Trailer Sway Control

  • Rear Electronic Differential Lock

  • Steel underbody protector (below radiator)

  • Full Size Spare Wheel - Matching Alloy

Exterior

  • V-motion front grille - with silver accent

  • Side Window Surround - Black

  • Privacy Glass (second row and rear window)

  • Headlamps - LED

  • Tail Lamps - LED

  • Daytime Running Lamps - LED

  • LED Turn Signals in Door Mirrors

  • LED Front Fog Lamps

  • Side Step - black grained with silver highlight

  • Door Mirrors - Boulder Grey

  • Front Bumper - Body colour with body colour lower

  • Rear Bumper - Black plastic with Gloss Black accents

  • Door Handles - Boulder Grey

  • UV & Heat Rejecting Windscreen

  • "Navara" tailgate badge - silver

  • Highway Terrain Tyres - 265/60R18

  • Manually levelling headlights

Comfort & Convenience

  • Intelligent Cruise Control

  • Power adjustable, power folding, heated door mirrors

  • Power Windows (Auto Up/Down for Driver)

  • High Beam Assist (HBA)

  • Automatic Headlights

  • Automatic Dimming Frameless Internal Rear View Mirror

  • Automatic Rain Sensing Wipers

  • Rear Window Defroster

  • Remote Keyless Entry & Intelligent Key with Push Button Engine Start

  • Air Conditioning - Dual Zone Climate Control

  • 2nd Row Air Vents

Audio & Connectivity

  • 9.0" Touchscreen

  • Wireless Apple CarPlay & Wired Android Auto

  • Bluetooth Phone & Audio Streaming

  • AM/FM/DAB+ Radio

  • Speakers - 6

  • 2 x 12V Outlet (Instrument Panel / Rear of Centre Console)

  • 1 x USB-A, 1x USB-C (data and charge) - Instrument Panel

  • 1 x USB-A / 1 x USB-C (charge only) - Rear of Centre Console

  • Satellite Navigation

  • Wireless Smartphone Charger

Interior

  • 7.0" Advanced Drive-Assist Instrument Cluster Display

  • Digital Speedometer

  • Driver seat - 8-way power adjustable with 2-way power lumbar

  • Passenger seat - 4-way manual adjustable

  • Front Seat - Heated Driver/Passenger

  • Front Seat - Seat Back Pockets

  • Passenger seat back upper pockets

  • Rear Seat - Armrest with Cup Holder

  • Rear Seat - Headrests (3)

  • Rear Seat - ISOFIX x2

  • Rear Seat - Top Tether Child Seat Anchor x2

  • Bench rear seats

  • Steering Wheel - Leather-accented

  • Gear Shift Lever - Leather Accented with PVC boot

  • Floor Material - Carpet

  • Door Handles - Satin Chrome

  • Centre Console Lid - PVC wrapped with silver stitching

  • Ambient Temperature Gauge

  • Driver & Front Passenger Sun Visors with Vanity Mirrors

  • Sunglasses Holder

Safety / Security

  • Around View Monitor with Moving Object Detection (MOD)

  • Anti-lock Braking System (ABS) and Electronic Brakeforce Distribution (EBD)

  • Vehicle Dynamic Control (VDC) with Brake Limited Slip Differential (BLSD)

  • Electronic Brakeforce Distribution

  • 8 Airbags (Front, Side Seat, Curtain, Driver Knee, Front Row Centre)

  • Reverse Parking Camera

  • Front & Rear Parking Sensors

  • Intelligent Forward Collision Warning (IFCW)

  • Intelligent Emergency Braking (IEB)

  • Intelligent Driver Alert (IDA)

  • Lane Departure Warning (LDW)

  • Intelligent Lane Intervention (ILI)

  • Blind Spot Warning (BSW)

  • Emergency Lane Assist (ELA)

  • Rear Cross Traffic Alert (RCTA)

  • Tyre Pressure Monitoring System (TPMS)

  • 3-point seatbelts with warning for all seats

  • Central Locking (Speed Sensing with Anti-Lock Out)

  • Immobiliser & Alarm

  • Child safety rear door locks

  • Lockable Fuel Filler Door

  • Front Cross Traffic Alert (FCTA)

  • Traffic Sign Recognition (TSR)

  • Speed Limiter

  • Electronic Data Recorder

  • Secondary Collision Mitigation Braking

  • Emergency Assist for Pedal Misapplication (forwards & reverse)

  • Traction Control System

  • Trailer Sway Control

  • Speed Sensing Central Locking

Trim

  • Black

Pre-paid Maintenance Plan

  • 2 YEARS / 2 SERVICES

  • 3 YEARS / 3 SERVICES

  • 4 YEARS / 4 SERVICES

  • 5 YEARS / 5 SERVICES

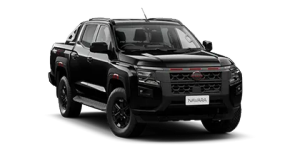

navara auto 4x4 pro 4x dual-cab side profile

PRO-4X Dual Cab

Equipment Includes

  • Darkened styling theme with red accenting
  • Leather seats with PRO-4X embroidery⁽²⁰⁾
  • 17” black alloy wheels
  • All terrain tyres
  • Premcar tuned suspension⁽²⁾ available
  • Black fender flares

You are viewing

{xss:encodeForHTML(xssAPI,properties.txOverViewTabLabel)}

Overview

Diesel 2.4L twin turbo diesel engine Automatic 6 4X4

Equipment Includes

Automatic
Transmission
4X4
drivetrain

Specs

Your Version

Engine

  • Fuel Type

    Diesel

  • Driven wheels

    4X4

  • Number of Gears

    6

  • Number of Cylinders

    4

  • Gear Box Type

    Automatic

  • Displacement (cc)

    2442

  • Bore x stroke (mm)

    86.0 x 105.1

  • Maximum power (kW @ rpm)

    150 @ 3500

  • Maximum torque (Nm @ rpm)

    470 @ 1500 - 2750

Dimensions

  • Overall length (mm)

    5320

  • Overall width (excluding mirrors) (mm)

    1930

  • Overall height (mm)

    1815

  • Wheelbase (mm)

    3130

  • Track front/rear (mm)

    1570 / 1565

  • Min. turning circle (kerb to kerb) (m)

    12.7

  • Ground clearance unladen (mm)

    228

  • Overhang - front

    890

  • Overhang - rear

    1300

  • Approach angle (degrees)

    30.4

  • Departure angle (degrees)

    22.8

  • Ramp breakover angle (degrees)

    23.4

  • Cargo Bed - length floor (mm)

    1555

  • Cargo Bed - length top (mm)

    1555

  • Cargo Bed - width floor (mm)

    1545

  • Cargo Bed - width top (mm)

    1545

  • Cargo Bed - width between wheel arches (mm)

    1135

  • Cargo Bed - tailgate opening width (mm)

    1360

  • Cargo Bed - height (mm)

    525

Weight

  • Gross Vehicle Mass (GVM) (kg)

    3190

  • Gross Combined Mass (GCM) (kg)

    6250

  • Kerb mass (kg)

    2140

  • Payload (kg)

    1050

  • Gross front axle (kg)

    1580

  • Gross rear axle (kg)

    2040

  • Trailer without brakes (kg)

    750

  • Trailer with brakes (kg)

    3500

  • Fuel tank capacity (litres)

    Diesel - 75

  • Fuel tank capacity (litres)

    Ad Blue - 17

Consumptions

  • Fuel consumption (combined ADR 81/02) (l/100km)

    7.7

  • CO₂ emissions (g/km)

    203

Chassis

  • Transfer case

    Dual range 4x4 with electronic selection

  • Fuel System

    Common rail direct injection

  • Front Brakes

    Ventilated discs

  • Rear Brakes

    Drum

  • Front Suspension

    Independent double-wishbone with coil spring and stabiliser bar

  • Rear Suspension

    Leaf spring

  • Power Steering

    Electronic Power Steering

Body

  • Body Type

    Dual Cab

  • Number of Doors

    4

  • Number of Seats

    5

Equipment

Your Version

Upholstery

  • Seat trim - black leather-accented with red accents & "PRO-4X" front seat embroidery

Wheels

  • Matte Black Alloy Wheels - 17” x 7.5”

Capability

  • Hill Start Assist (HSA)

  • Hill Descent Control (HDC)

  • Terrain Mode Selector (Normal, Eco, Gravel, Snow, Mud, Sand & Rock)

  • Trailer Sway Control

  • Rear Electronic Differential Lock

  • Steel underbody protector (below radiator)

  • Full Size Spare Wheel - Matching Alloy

Exterior

  • V-motion front grille - Pro-4X with red accent

  • Side Window Surround - Black

  • Privacy Glass (second row and rear window)

  • Headlamps - LED

  • Tail Lamps - LED

  • Daytime Running Lamps - LED

  • LED Turn Signals in Door Mirrors

  • LED Front Fog Lamps

  • Side Step - black grained with gloss black highlight

  • Door Mirrors - Gloss Black

  • Front Bumper - Body colour with body colour lower

  • Rear Bumper - Black plastic with Gloss Black accents

  • Door Handles - Gloss Black

  • UV & Heat Rejecting Windscreen

  • Roof Rails - Gloss Black

  • Fender Flares - Black

  • "Navara" tailgate badge - black with red accenting

  • All Terrain Tyres - 265/65R17

  • Manually levelling headlights

Comfort & Convenience

  • Intelligent Cruise Control

  • Power adjustable, power folding, heated door mirrors

  • Power Windows (Auto Up/Down for Driver)

  • High Beam Assist (HBA)

  • Automatic Headlights

  • Automatic Dimming Frameless Internal Rear View Mirror

  • Automatic Rain Sensing Wipers

  • Rear Window Defroster

  • Remote Keyless Entry & Intelligent Key with Push Button Engine Start

  • Air Conditioning - Dual Zone Climate Control

  • 2nd Row Air Vents

Audio & Connectivity

  • 9.0" Touchscreen

  • Wireless Apple CarPlay & Wired Android Auto

  • Bluetooth Phone & Audio Streaming

  • AM/FM/DAB+ Radio

  • Speakers - 6

  • 2 x 12V Outlet (Instrument Panel / Rear of Centre Console)

  • 1 x USB-A, 1x USB-C (data and charge) - Instrument Panel

  • 1 x USB-A / 1 x USB-C (charge only) - Rear of Centre Console

  • Satellite Navigation

  • Wireless Smartphone Charger

Interior

  • 7.0" Advanced Drive-Assist Instrument Cluster Display

  • Digital Speedometer

  • Driver seat - 8-way power adjustable with 2-way power lumbar

  • Passenger seat - 4-way manual adjustable

  • Front Seat - Heated Driver/Passenger

  • Front Seat - Seat Back Pockets

  • Passenger seat back upper pockets

  • Rear Seat - Armrest with Cup Holder

  • Rear Seat - Headrests (3)

  • Rear Seat - ISOFIX x2

  • Rear Seat - Top Tether Child Seat Anchor x2

  • Bench rear seats

  • Steering Wheel - Leather-accented with orange stitching

  • Gear Shift Lever - Leather Accented with PVC boot

  • Floor Material - Carpet

  • Door Handles - Black

  • Centre Console Lid - PVC wrapped with orange stitch

  • Ambient Temperature Gauge

  • Driver & Front Passenger Sun Visors with Vanity Mirrors

  • Sunglasses Holder

Safety / Security

  • Around View Monitor with Moving Object Detection (MOD)

  • Anti-lock Braking System (ABS) and Electronic Brakeforce Distribution (EBD)

  • Vehicle Dynamic Control (VDC) with Brake Limited Slip Differential (BLSD)

  • Electronic Brakeforce Distribution

  • 8 Airbags (Front, Side Seat, Curtain, Driver Knee, Front Row Centre)

  • Reverse Parking Camera

  • Front & Rear Parking Sensors

  • Intelligent Forward Collision Warning (IFCW)

  • Intelligent Emergency Braking (IEB)

  • Intelligent Driver Alert (IDA)

  • Lane Departure Warning (LDW)

  • Intelligent Lane Intervention (ILI)

  • Blind Spot Warning (BSW)

  • Emergency Lane Assist (ELA)

  • Rear Cross Traffic Alert (RCTA)

  • Tyre Pressure Monitoring System (TPMS)

  • 3-point seatbelts with warning for all seats

  • Central Locking (Speed Sensing with Anti-Lock Out)

  • Immobiliser & Alarm

  • Child safety rear door locks

  • Lockable Fuel Filler Door

  • Front Cross Traffic Alert (FCTA)

  • Traffic Sign Recognition (TSR)

  • Speed Limiter

  • Electronic Data Recorder

  • Secondary Collision Mitigation Braking

  • Emergency Assist for Pedal Misapplication (forwards & reverse)

  • Traction Control System

  • Trailer Sway Control

  • Speed Sensing Central Locking

Trim

  • Black

Pre-paid Maintenance Plan

  • 2 YEARS / 2 SERVICES

  • 3 YEARS / 3 SERVICES

  • 4 YEARS / 4 SERVICES

  • 5 YEARS / 5 SERVICES

Take the Next Step

Disclaimer Detail:

* MRP (Maximum Retail Price) shown includes GST but excludes on road costs. ORC includes initial 12 month registration & WOF, 10,000km RUC, fuel and vehicle delivery.
MY26 Navara model shown in imagery. Due to variations in computer hardware and software, actual vehicle colours may vary from those reproduced on this site.
** CarPlay is a registered trademark of Apple Inc. Android Auto is a trademark of Google LMC. Compatible device and USB connection required.
(2) Locally Tuned Suspension - Suspension developed & quality assured for the Australian & New Zealand Markets by Premcar Pty. Ltd. Available as optional accessories at additional cost for the SL Model.
(20) Leather-accented features and upholstery may contain synthetic material. Minor trim variations may occur from time to time.
(26) Features described are driver’s aid(s) only, not a substitute for safe driving. Always monitor your surroundings.
(40) Payload capacity is variant specific. Check technical specifications for full details. Payload is the GVM minus the Kerb mass. The kerb mass does not include passengers, luggage, cargo, any accessories fitted or any towball download (as appropriate). Payload is distributed across both the front and rear axles, never exceed the GVM or the axle limits. Payload figure is calculated prior to fitment of any tray or body to the vehicle.
(52) Compatible device required
‡ Towing capacity is subject to towbar/towball capacity and is based on the fitment of a Genuine Nissan towbar. Towing capacity figure described is a maximum figure. Actual towing capacity depends on the laden mass of the vehicle, driving conditions, fitment of any accessories or towing equipment limitations including the maximum towball download.
